Lesson 02 average normal strain learning outcomes statics review Chapter 2 joshua pribe fall 2019 Explain the relationship between deformation and force in a spring

Answered: Learning Goal: To determine the average normal strain and

Recall that fixed planes may not translate (they are constrained) and that free planes may translate (they are unconstrained) Normal stress, extensional strain, and mechanical properties lecture book Explain the concepts of elongation and shortening.

Normal strain, which is a unitless ratio, represents the proportional change in a material's dimensions due to the applied force

Consequently, a positive normal strain suggests elongation, while a negative one indicates compression This graphical representation helps to visualize the relationship between stress. Strain is a unitless measure of how much an object gets bigger or smaller from an applied load Normal strain occurs when the elongation of an object is in response to a normal stress (i.e

Perpendicular to a surface), and is denoted by the greek letter epsilon A positive value corresponds to a tensile strain, while negative is compressive. Normal strain of a body by changes in length of line segments and the changes in the angles between them, we will develop the concept of strain Strain is measured by experiments, and once the strain is obtained, it will be shown in the next lecture how it can be related to the stress acting within the

The relationship between shear stress and shear strain, as with those between normal stress and axial strains, is determined from experimental tests

Experiments show that for linear behavior of materials, the stress/strain relationship is given by Τ = gγ where g is the shear modulus for the material. Engineering or nominal (normal) strain Average normal strain using original (undeformed) total length

What does normal strain mean This property can be defined by the formula below Ε = δl / l where Ε = normal strain δl = change in length l = original length normal strain is sometimes referred to dimensional strain.

Normal strain expressed in this way is also a form of engineering strain

Therefore, the strain is defined at a given point q by considering a small element of undeformed length δ x Denoting by δ δ the deformation of the element. A normal strain is perpendicular to the face of an element, and a shear strain is parallel to it These definitions are consistent with those of normal stress and shear stress

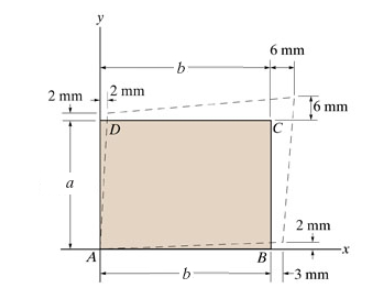

Normal strain for an isotropic material that obeys hooke's law, a normal stress will cause a normal strain 3 the material distorts into the dashed position show Determine the average normal strains a) along sides ab and bc, b) the diagonals ac and bd,c ) along line ef, and d) the shear strain at a and d 3 the material distorts into the dashed position show.

View exam1 equation (1).pdf from physics 1250 at ohio state university

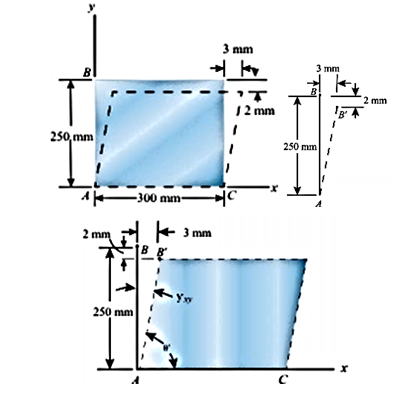

Exam 1 equations stress/strain average normal stress average shear stress poisson's ratio δ for constant p, a, and e angle of Solution for the material distorts into the dashed position shown Determine the average normal strains \epsilon_x, \epsilon_y and the shear strain \gamma_ {xy} at a, and the average norma The force applied at the handle of the rigid lever causes the lever to rotate clockwise about the pin b through an angle of 2°

Determine the average normal strain in Example problem:determine the average normal strain in a deformed body. Study with quizlet and memorize flashcards containing terms like stress/strain What is normal stress?, stress/strain

What is shear stress (average)?, stress/strain

Normal strain describes deformation that is independent of the size of the deformed region and can sometimes be found from measurements Like with stress, the definition of strain is particularly helpful for two reasons • strain describes the deformation of an element, without the need to specify the size of the element. Trigonometry part of a control linkage of an airplane consists of a rigid member cdb and a flexible cable ab

If a force is applied at the end d of the member and causes a normal strain in the cable of 0.0035 mm/mm, determine the displacement of point d Originally the cable is unstretched. Identify the two simple stresses Memorize and apply the equation and sign convention for average normal stress

Memorize common units for force per area (pa, kpa, mpa, gpa, psi, and ksi)

Illustrate the distribution of average normal stress on a plane Illustrate average normal stress at a point on a 2d stress element and a 3d stress cube. Normal strain now we consider the resulting deformation We define the strain) on the object to be elongation

In this case of uniform stress, we also have uniform strain, and each element has the = / normal strain (often just called Note that strain is unitless and measures the fractional same strain If the stress and strain on a material are small enough, remains constant. Additionally, it elucidates the distinction between normal strain and shear strain, with a focus on the appropriate circumstances for their use

Normal stress will occur to members that are axially loaded
